AC 380V Computerized Quilting Machines For Apparel Fabrics Sewing Speed 400-500n/M

AC 380V Computerized Quilting Machines For Apparel Fabrics Sewing Speed 400-500n/M
AC 380V Computerized Quilting Machines For Apparel Fabrics Sewing Speed 400-500n/M AC 380V Computerized Quilting Machines For Apparel Fabrics Sewing Speed 400-500n/M AC 380V Computerized Quilting Machines For Apparel Fabrics Sewing Speed 400-500n/M AC 380V Computerized Quilting Machines For Apparel Fabrics Sewing Speed 400-500n/M

Large Image :  AC 380V Computerized Quilting Machines For Apparel Fabrics Sewing Speed 400-500n/M

Product Details:
Place of Origin: China
Brand Name: EBD
Certification: CE,SGS,OMA
Model Number: 128"3Needle
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: sea worthy packing
Delivery Time: 30-35days upon receipt of deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Detailed Product Description
Model No:: 128"3Needle Maximum Working Width:: 3251mm
X-axis Movement:: 305mm Sewing Speed:: 400-500n/m
Working Quilting Design:: 360° Rated Voltage:: AC380V
Voltage Deviation:: ±4% Maximum Energy Consumption:: 5.2kw
Product Size:(L*W*H)(mm):: L5700*W1300*H1700(mm) Alias:: Computer Multi-needle Machine
High Light:

quilting with embroidery machine

,

computerized embroidery machine

,

computer quilting machine for apparel

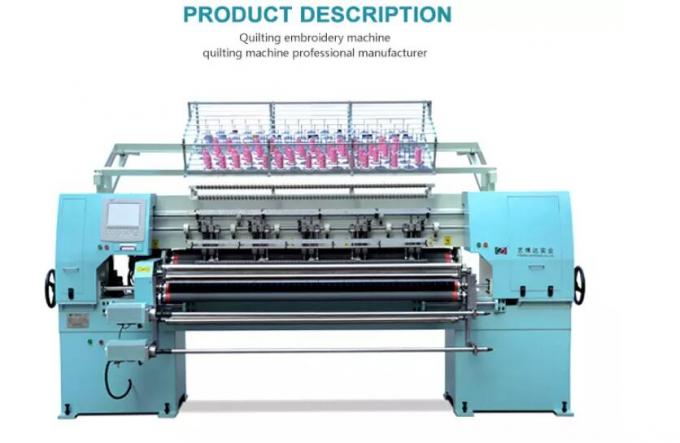

YBD128 ‘3 computer quilting machine multi-needle used in apparel fabrics



APPLICATIONS:



Yiboda Quilting and Embroidery Machine is widely used in car seat , foot pad , car pad , luggage and garment , home textile like quilts , curtain , bed cover , etc





Function / Introduction:



1. This type of spindle adopts Panasonic variable frequency motor, which is more environmentally friendly and quieter.
2. This computer type comes with a large number of quilted pattern versions to choose from. The computer system has simple and quick pattern editing function, which is suitable for changing market demands.
3. This model can arbitrarily quilting in 360-degree pattern, and it can quilt out the function of independent flower shape.
4. This computer system is equipped with an intelligent operation online help prompt.
5. This model computer system is equipped with a quilted analog display.
6. This model comes with automatic needle lifting and positioning brake system, and the automatic stop function of disconnection during quilting process.
7. This model comes with an infrared sensor protection device to make the operation safer during use.
8. This type of fabric is equipped with a tension motor to ensure the accuracy of the pattern.
9. This model has the function of quilting pattern compensation, which can effectively solve the problem of pattern deformation of thick materials during quilting.
10. This model computer system is equipped with a quilted analog display.
11. This model adopts computer numerical control scheme.
12. This type of X/Y direction drive adopts servo control, which is more stable than other models.


Application: This machined product is widely used in bed series, clothing fabrics, decorative items and so on.



Compare with the C series Lock stitch quilting machine:



1.Bearing with lock core, stable and not easy to heat

2.Permanent magnet inductor, less loss current, more stable pattern

3.Using synchronous belt drive, uniform rotation speed

4.Encoder program, machine information transmission more accurate

5.Adopt aviation aluminum strip, lighter material, faster machine speed

6.Angle of fuselage for easy shuttle change

7.Cut-off auto-stop infrared data direct to the computer, the reaction speed is faster

8.Big Four Volt Power, Faster Machine Running, up to 1000r/min



Machine Parameters:



Mode: 128"3Needle 94"3Needle 94"2Needle 64"3Needle 64"2Needle
Working Width: 3251mm 2438mm 2438mm 1676mm 1676mm
X Area: 305mm 305mm 250mm 305mm 250mm
Sewing Speed: 400-500n/m 400-550n/m 400-550n/m 400-600n/m 400-600n/m
Quilting Design: 360° 360° 360° 360° 360°
Rated Voltage: AC380V AC380V AC380V AC380V AC380V
Voltage Deviation: ±4% ±4% ±4% ±4% ±4%
Power: 5.2kw 4.5kw 4.5kw 3.5kw 3.5kw
Machine Size: L5700*W1300*H1700(mm) L4800*W1300*H1700(mm) L4800*W1300*H1700(mm) L4800*W1300*H1700(mm) L4800*W1300*H1700(mm)
Container Info: 20GP:1-2SETS, 40GP:2-4SETS





High Quality Spare Parts:



Imported parts of bobbin case , rotary hook , bobbin
Linear guide
Servo Motor & Drive
YBD166 Needle distance : 50.8mm
Moving distance in X direction can reach 250mm





AC 380V Computerized Quilting Machines For Apparel Fabrics Sewing Speed 400-500n/M 0

AC 380V Computerized Quilting Machines For Apparel Fabrics Sewing Speed 400-500n/M 1



AC 380V Computerized Quilting Machines For Apparel Fabrics Sewing Speed 400-500n/M 2

Quits Pattern Sample:



AC 380V Computerized Quilting Machines For Apparel Fabrics Sewing Speed 400-500n/M 3
