Effective Embroidery Quilt Making Machine Safe Operation 5kw Power Long Lifespan
-
-
Large Image :
Effective Embroidery Quilt Making Machine Safe Operation 5kw Power Long Lifespan
|
Product Details:
| Place of Origin: |
China |
| Brand Name: |
EBD |
| Certification: |
CE,SGS,OMA |
| Model Number: |
YBD24 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1Set |
| Price: |
Negotiable |
| Packaging Details: |
sea worthy packing |
| Delivery Time: |
30-35days |
| Payment Terms: |
L/C, T/T, Western Union |
| Supply Ability: |
100 sets/month |
|
Detailed Product Description
| N/C/H: |
24(double Width) |
Needle Distance: |
50.8mm |
| X Area: |
1650mm |
Stitch Distance: |
1mm-12.7mm |
| Needle Type: |
9#-16# |
Working Width: |
1600mm |
| Speed: |
700R.P.M~900R.P.M |
Power Supply: |
AC220/380V,50HZ |
| Power: |
5KW |
Machine Size: |
L6700*W1650*H1750(MM) |
| ITEM NO.: |
YBD24 Double Width |
YBD24 Horizontal Quilting Embroidery Machine-double width
Function:

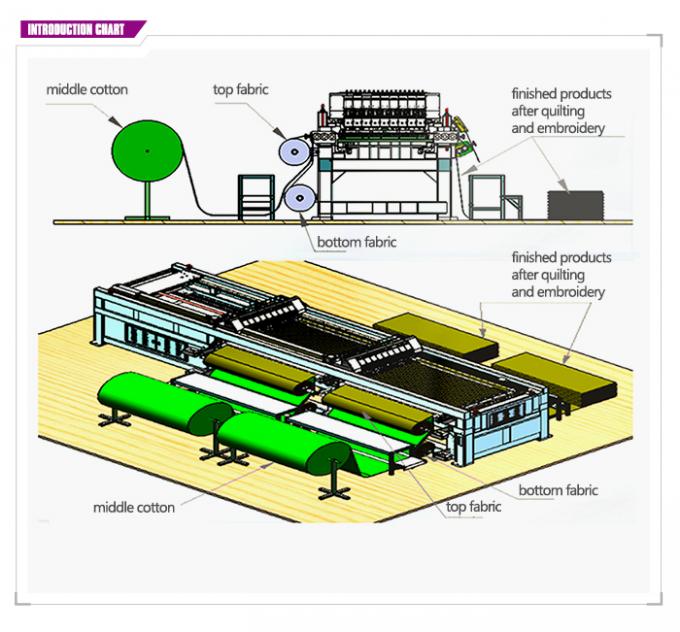

Quilt and Embroider horizontally alongside the width of fabric. Especially for the horizontal and straight quilting & embroidery designs on the fabric.
Features:
- The machine adopted large rotary hook to make neat stitches and with lower noise, and effectively reduced defects such as miss stitches, loose stitches, coarse stitches, etc
- Quilt & embroidery completed simutaneously.
- The integral steel structure machine frame with higher intensity and stability.
- Infrared protection device in all direction make machine operation more safe and reliable.
- Function of independent patterns interval quilting, adopting Tensile Motor to keep the fabric smooth at the inlet and outlet fabrics.

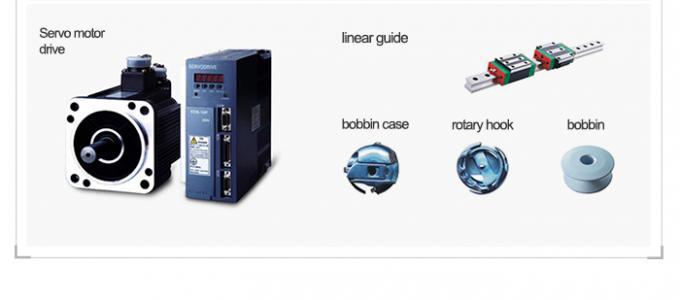

- Main axis and XY axis are all adopted the Servo Motor.
- Function of under and upper thread auto detector, red light displayed on the thread broken position.
- Function of edit patterns on the equipment directly, and convenient to read the embroidery format.
- Stitches between 1mm-12.7mm adjustable, Sewing Speed: 800-1000/R.P.M.
- Safe operation display of quilting and embroidery; Automatic needle run-up and orientation brake system.
- Function of pattern patch-up, can efficiently solve the distorted patterns when quilting the thick materials.
- Prepared plenty patterns for your choice.

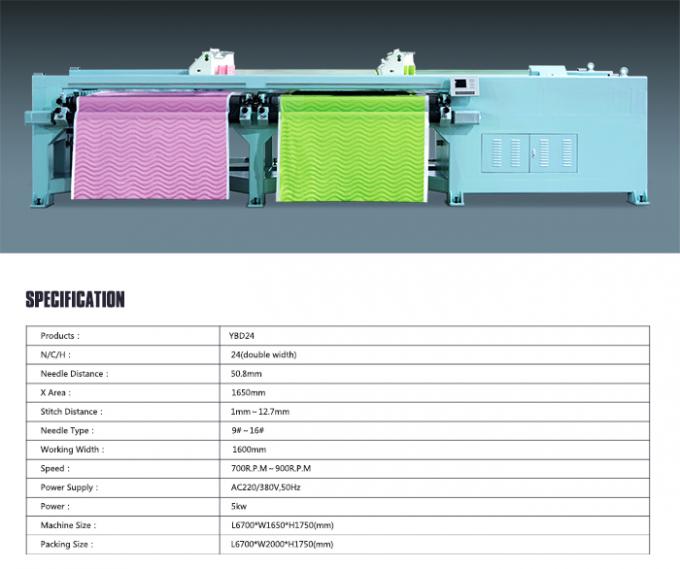

Parameters:
| Products: |
YBD24 |
| N/C/H: |
24(double width) |
| Needle Distance: |
50.8mm |
| X Area: |
1650mm |
| Stitch Distance: |
1mm~12.7mm |
| Needle Type: |
9#~16# |
| Working Width: |
1600mm |
| Speed: |
700R.P.M~900R.P.M |
| Power Supply: |
AC220/380V,50Hz |
| Power : |
5kw |
| Machine Size : |
L6700*W1650*H1750(mm) |
| Packing Size : |
L6700*W2000*H1750(mm)
|
