Product Details:
Payment & Shipping Terms:
|
Model NO.: | YBD333 | N/C/H: | 33 Heads , 3colors |
---|---|---|---|
Needle Distance: | 101.6 Mm | X-Area: | 310mm |
Stitch Distance: | 1mm-12.7mm | Needle Type: | 9#~16# |
Working Width: | 3251 Mm | Speed: | 650 R.P.M~900 R.P.M |
Power Supply: | AC220/380V;2&3 Phases; 50Hz | Power: | 5 Kw |
Machine Size: | L5200*W1300*H1650(mm) | Packing Size: | L5300*W2000*H1950(mm) |
High Light: | sewing quilting embroidery machine,quilting embroidery machine |

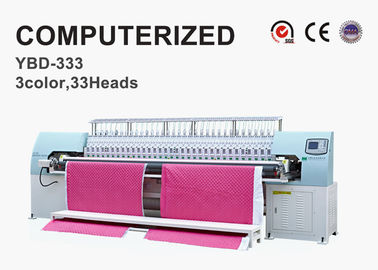

YBD333 Heads Tricolor Quilting Embroidery Machine Single Roll 128 Inch Multiple needles
APPLICATIONS:
Yiboda Quilting and Embroidery Machine is widely used in car seat , foot pad , car pad , luggage and garment , home textile like quilts , curtain , bed cover , etc
Features:
1) Computerized quilting and embroidery at the same time
2) Automatic change arbitrary head for quilting and embroidery
3) Continuous quilting of independent pattern ,skip quilting function
4) unlimited and contiuous quilting and embroidery in Y direction,front and rear automatic tensioning systems.
5) floppy disk generally used for common embroidery machine,support USB flash memory,readable many EMBROIDERY format.
6) Independent presser foot operation to make the product have three-dimensional aesthetics
7) Rolling shaft design in Y direction ,cloth can be continuously sewn or quilted
8) Simple ,convenient and feasible operation
9) Rotating speed control ,power-off protection ,power-off meoory function
10) Broken line detection ,roll back quilting and embroidery function
Machine Parameters:
Machine Code: | YBD333Computerized Quilting Embroidery Machine |
N/C/H: | 33 Heads , 3 color |
Needle Distance: | 101.6 mm |
X Area: | 310 mm |
Stitch Distance: | 1mm--12.7mm |
Needle Type: | 9#--16# |
Working Width: | 3251 mm |
Speed: | 650R.P.M--900R.P.M |
Power Supply: | AC220/380V;2&3Phases;50Hz |
Power | 5kw |
Machine Size : | L5200*W1300*H1650(mm) |
Packing Size : | L5300*W2000*H1950(mm) |
High Quality Spare Parts:
Imported parts of bobbin case , rotary hook , bobbin
Linear guide
Servo Motor & Drive
YBD333 Needle distance : 101.6 mm
Moving distance in X direction can reach 310mm
Working Theory:
Based on the sewing machine principle, the three-axis drive control is implemented in conjunction with the control system to stitch various patterns on the multilayer fabric.
