Product Details:
Payment & Shipping Terms:
|
| Model Code.: | YBD128-3 Needle Bars | Max Working Width: | 3251mm |
|---|---|---|---|
| X Area: | 305mm | Free Quilting Designs: | 360° |
| Rated Voltage: | AC 380V | Voltage Range: | +-4% |
| Power: | 5.2kw | Machine Size: | L5700*W1300*H1700(mm) |
| Machine Speed: | 400-500 Rpm | Certificates: | SGS,CE,OMA |
| High Light: | computerized quilting machines,duvet quilting machine,computerized multi needle textile quilting machine |
||

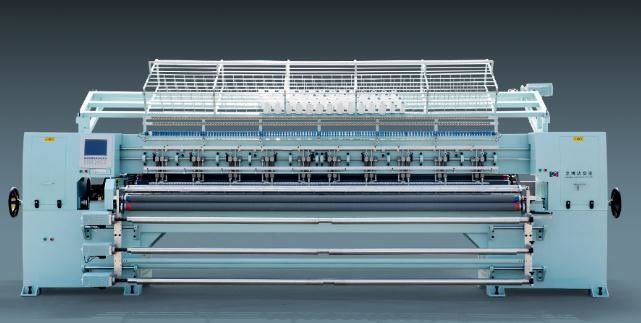

YBD128-3 Superio textile quilting machine factory direct sale computer multi-needle quilting machine
Features:
1. Machine adopt triple rockers to lift and down needle bars quiet
2. Use Panasonic servo motor to drive X , Y axis , Brand bearings to firmed hold
3. Auto stopping function active when thread break
4. Needle can automatic run-up when machine stop
5. Can quilt precise patterns, solved many quilts problem
6. When start machine there is safety device
7. CNC computerized visualized control system
8. Able to change Chinese to English operation version
9. Limitless 360 degree quilts, and independent pattern
10. Fast speed, stable performance, low noise, presice quilt
11. Computer and machine body all-in-one type, easy to install and load.
Main Function:
1). Adopt the advanced digital computer technology.
2). Saddling rack and roller are drive by servo motor.
3). Main axis uses the frequency conversion device.
4). The stitch can be freely set between 2-6mm.
5). more firm and durable needle bar frame structure with cheaper maintenance cost
6). 360 ° random quilting and limitless multi-span and independent pattern quilting
8). the machine is auto - stop when thread is broken with advanced interaction techniques
Machine Parameters:
| Model Code.: | 128-3 Needles |
| Fabric Width | 3251 mm |
| X Area: | 305 mm |
| Speed Running: | 400~500 n/m |
| Quilting Design Range: | 360° |
| Rated Voltage: | AC380V |
| Voltage Deviation: | ±4% |
| Power: | 5.2 kw |
| Machine Dimension: | L5700*W1300*H1700(mm) |
Payment Term:
T/T 30% deposit from the date receipt, balance 70% by T/T before shipment
Delivery:
within 35-40 days after received the deposit
1Year Warranty and Installation:
1. Offering some free spare part when ship with the machine
2. Our machine will come with easy-to-follow, step-by-step assembly instructions as well as a basic training CD and manual on CD
3. If required, YIBODA will send technician to your factory for product training, installation, food, room, and ticket will absorbed at customer's side.
4. Within a year of spare parts if any damage, the supplier free warranty. Due to the buyer for damage and damage resulting from force majeure is not in the scope of the warranty. (note bobbin case, bobbin, needles, fluorescent lamp, Bobbin Winder Machine is not in the scope of the warranty)
Quits Samples:
