| Model NO.: | YBD110"2 Needle | Working Width: | 2794mm |
|---|---|---|---|
| X Area: | 220mm | Rated Voltage: | AC 220/380V,50HZ |
| Power: | 5.5kw | Machine Size: | L5020*W1380*H2050(mm) |
| Sewing Speed: | 600~700 R.P.M | Needle Type: | 9#~16# |
| Stitch Distance: | 1mm~12.7mm | Design: | 360° |
| High Light: | quilt making machine,overlock sewing machine |
||

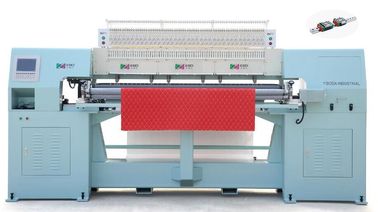

YBD110"-2 High Speed Rotating Shuttle Multi heads Quilt Making Machine , car seat production making , for quilts factory
Features:
1. Large rotating hook is adopted in this machine
2. Can perfectly complete neat stitches far surpass others , with lower noise
3. Effectively reduced defects such as miss stitches , loose stitches , coarse stitches , etc.
4. Quilt & embroidery can completed at the same time
5. Independent patterns interval quilting function
6. The inlet and outlet fabrics are kept smoothy by Tensile Motor.
7. Servo Motor drive Main axis and XY axis.
8. Function of under and upper thread auto detector, red light displayed on the thread broken position.
Unparalleled Advantages:
2018 our rotary shuttle quilting machine has upgraded with high tech technology to great improve quilts effect and dramatically improve the headache quilts problem in this industry, such as
lapped angle ,
asymmetric angle ,
splited angle ,
wrong position, etc
Parameters
| Machine Model: | YBD110"2 Needles |
| Active Fabric Width | 2794mm |
| X Area: | 220mm |
| Machine Running Speed: | 600~700 R.P.M |
| Needle Type | 9#-16# |
| Rated Voltage: | AC220/380V,50HZ |
| Stitch Distance | 1mm~12.7mm |
| Power: | 5.5kw |
| Machine Size: | L5020*W1380*H2050(mm) |
Quits Sample :
