| Model Number.: | YBD64-2 Needle Bars | Fabric Working Width: | 1676mm |
|---|---|---|---|
| X Area: | 250mm | Freedon Quilting Direction: | 360° |
| Voltage: | AC 380V | Voltage Range: | +-4% |
| Power: | 3.5kw | Machine Dimension: | L3800*W1300*H1700(mm) |
| Quilts Speed: | 400-600 N/m | Certificates: | SGS,CE,OMA |
| High Light: | computer guided quilting machine,computerized chain stitch multi needle quilting machine |
||

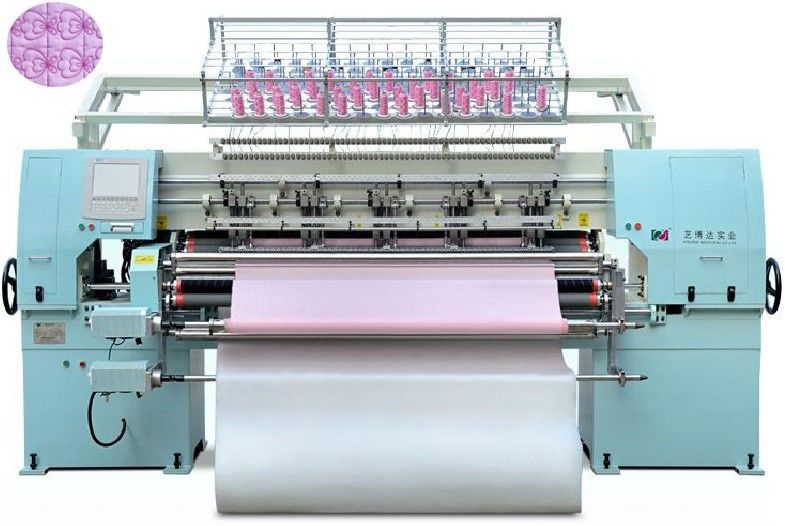

YBD64-2 Computerized Bed Sheet Making Machine , Shuttle Multi Needle Sewing Machine for Quilt , Chain Stitch Quilting Machine
Features Functions:
1. Adopting digital control program.
2. X/Y axis by Servo Motor.
3. The main axis by Panasonic FCM (Frequency Conversion Motor).
4. Prepared some quilting patterns for your choice.
5. Easy and quick editing of patterns.
6. 360°random quilting.
7. Function to quilt independent patterns.
8. On-line help on operation.
Main Function:
1). Adopt the High Tech computer technology.
2). Saddling rack and roller are drive by servo equipment.
3). Principal axis uses the frequency conversion Motor.
4). Adjust speed by computer and the Max. speed is 600r/min.
and the stitch can be set between 2-6mm.
5). illimitably quitls Multi-span and independent pattern quilting .
6). Compensation function, an effective solution for looping pattern with thick material.
7). Auto Run-up needle and prositioning brake system.
8). 200-300 patterns with machine for your choice
9). Switch the constant quilting and one-step quilting without any interval.
Machine Parameters:
| Model Code: | YBD64-2Needles BARS |
| Fabric Working Width | 1676mm |
| X Area: | 250mm |
| Quilting Speed: | 400~600 R.P.M |
| Freedon Quilt: | 360° |
| Voltage: | AC380V |
| Voltage Deviation: | ±4% |
| Power: | 3.5kw |
| Machine Length*Width*Height: | L3800*W1300*H1700(mm) |
Working Principle
Based on the sewing machine principle, the three-axis drive control is implemented in conjunction with the control system to stitch various patterns on the multilayer fabric.
Payment Term:
T/T 30% deposit from the date receipt, balance 70% by T/T before shipment
Delivery:
within 35-40 days after received the deposit
After-Sales Service:
1) YIBODA technician will help erect the machines and do necessary training to customer's operators.
2.) Should any problem happened, we will give immediate and active response, help & instruct to solve, through mall/cell phone or live cam.
3.) Preinstalled with many patterns/designs in USB to each machine. For new quilting patterns/designs, we will help & program at the earliest, free of charge.
3) Normal accessories are included with machines.
4) Provide necessary operation videos for reference.
