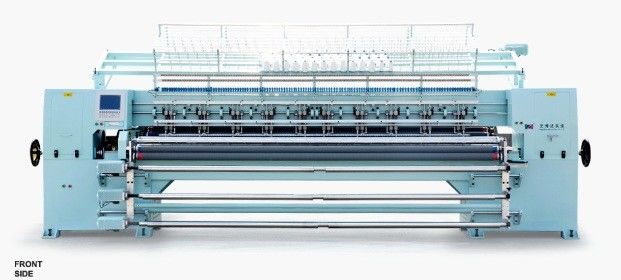

High Speed Computerized Multi Needle Quilting Machine With Infrared Sensors Protector

High Speed Computerized Multi Needle Quilting Machine With Infrared Sensors Protector
High Speed Computerized Multi Needle Quilting Machine With Infrared Sensors Protector High Speed Computerized Multi Needle Quilting Machine With Infrared Sensors Protector

Large Image :  High Speed Computerized Multi Needle Quilting Machine With Infrared Sensors Protector

Product Details:
Place of Origin: China
Brand Name: EBD
Certification: CE,SGS,OMA
Model Number: YBD128-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: sea worthy packing
Delivery Time: 30-35days upon receipt of deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Detailed Product Description
Model Code.: YBD128-3 Needle Bars Max Working Width: 3251mm
X Area: 305mm Free Quilting Designs: 360°
Rated Voltage: AC 380V Voltage Range: +-4%
Power: 4.2kw Machine Size: L5700*W1300*H1700(mm)
Machine Speed: 400-500 Rpm Certificates: SGS,CE,OMA
High Light:

multi needle quilting machine

,

computerized quilting machines

,

computerized cotton fabric quilting machine

YBD128-3 High speed Computerized Quilting Machine Multi Needle Sewing Quilt Making Equipment



Main Feacture:



1. Convenient feeding device for easy loading all different kinds of fabrics

2. Able to quilt 3 layers of fabric , like top fabric, middle fabric and bottom fabric.

3. Equiped with a constant and accurate top fabric tension to control the fabric,

4. Adopt Independent of the rolls diameter.



Application :



It is widely used for quilting high-quality shell fabric , lining , plus material , clothing material , embridered fabric , cotton fabric , etc .



Specification:



1.  Use A triple- Swinging device to control three Needle bars and press plate and ensure material is not dirty



2 . Can quilt independent patterns in 360° Multi-direction.



3 . Machine Automatic stop , as well as automatic needle-lifting when thread break,



4.  The sewing speed can be adjusting



5 . CNC precision control system make it that No need to adjust the press plate' s position when the thickness of quilting material varies



6 . 200-300 latest designs come with machine for your choice



7 . Safe operate the machine with an Infrared Sensors protector



Main Function:



1). Adopt the High Tech computer technology.

2). Saddling rack and roller are drive by servo equipment.

3). Principal axis uses the frequency conversion Motor.

4). Adjust speed by computer and the Max. speed is 600r/min.

    and the stitch can be set between 2-6mm.

5) .illimitably quitls Multi-span and independent pattern quilting .

6). Compensation function, an effective solution for looping pattern with thick material.

7). Auto Run-up needle and prositioning brake system.

8). 200-300 patterns with machine for your choice

9). Switch the constant quilting and one-step quilting without any interval.

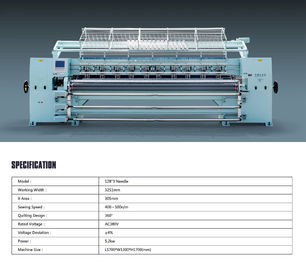

Machine Parameters:



Model Type:  128-3Needles
Working Width 3251mm
X Area: 305mm
Sewing Speed: 400~500n/m
Quilting Design: 360°
Rated Voltage: AC380V
Voltage Deviation: ±4%
Power: 4.2kw
Machine Size: L5700*W1300*H1700(mm)





Payment Term:



T/T 30% deposit from the date receipt, balance 70% by T/T before shipment



Delivery:
within 35-40 days after received the deposit



1Year Warranty and Installation:



1. Offering some free spare part when ship with the machine
2. Our machine will come with easy-to-follow, step-by-step assembly instructions as well as a basic training CD and manual on CD
3. If required, YIBODA will send technician to your factory for product training, installation, food, room, and ticket will absorbed at customer's side.
4. Within a year of spare parts if any damage, the supplier free warranty. Due to the buyer for damage and damage resulting from force majeure is not in the scope of the warranty. (note bobbin case, bobbin, needles, fluorescent lamp, Bobbin Winder Machine is not in the scope of the warranty)



Quits Samples:



High Speed Computerized Multi Needle Quilting Machine With Infrared Sensors Protector 0
