Model NO.: | YBD168 | N/C/H: | 68 Needles,Single Color |
---|---|---|---|
Needle Distance: | 50.8 Mm | X-Area: | 250mm |
Stitch Distance: | 1mm-12.7mm | Needle Type: | 9#~16# |
Working Width: | 3403 Mm | Speed: | 650 R.P.M~900 R.P.M |
Power Supply: | AC220/380V;2&3 Phases; 50Hz | Power: | 5.5kw |
Machine Size: | L5100*W1300*H1650(mm) | Packing Size: | L5400*W2000*H1950(mm) |
High Light: | quilting with embroidery machine,computer embroidery machine,multi head quilting and embroidery machine |

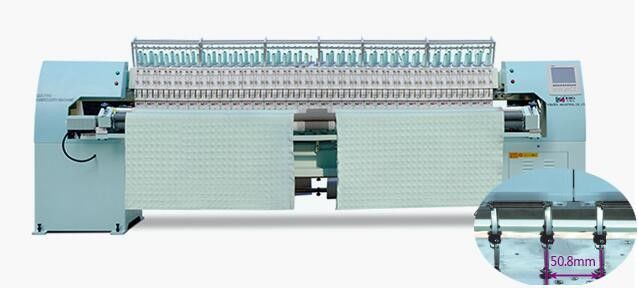

YBD168 128 Inch Multiple Head Quilting Embroidery Machine for Car Seat Cover , Sofa Cushion
APPLICATIONS:
Yiboda Quilting and Embroidery Machine is mainly used for quilts of high-grade mattress , quilt cover , bed cover , clothing , seat cover , fabric , home decoration and other patterns..
Features:
1. Unique quilting and embroidery drawing and plate making function
2. Precision finishing,and no need to modify the pattern,the difference between the finished patterns with the computer-ready patterns is tiny.
3. Advanced computer control systems ,low noise
4. Simple head structure ,reliable performance and easy maintenance
5. Taking the big rotating shuttle ,the max high speed can reach 900r/min.
6. Saddling rack,roller and principal motors are driven by servo motor.
7. 360° quilting and embroidery ,limitless multi-span and independent quilting and embroidery.
8. Stitch can be adjusted and pattern compensation function,an effective solution for graphical variant when quilting and embroidery thick material.
9. Auto-stop system when thread is broken ,auto and manual fill-stitch function.
10. Automatic lubrication system.
11. Machine head can be chosen randomly for quilting and embroidery.
Machine Parameters:
Machine Code: | YBD168 Computerized Quilting Embroidery Machine |
N/C/H: | 34 heads , 68 needles , 1 color |
Needle Distance: | 50.8 mm |
X Area: | 250mm |
Stitch Distance: | 1mm--12.7mm |
Needle Type: | 9#--16# |
Working Width: | 3403 mm |
Speed: | 650R.P.M--900R.P.M |
Power Supply: | AC220/380V;2&3Phases;50Hz |
Power | 5.5kw |
Machine Size : | L5100*W1300*H1650(mm) |
Packing Size : | L5400*W2000*H1950(mm) |
High Quality Spare Parts:
Imported parts of bobbin case , rotary hook , bobbin
Linear guide
Servo Motor & Drive
YBD168 Needle distance : 50.8 mm
Moving distance in X direction can reach 250mm
Quits Pattern Sample:
