Product Details:
Payment & Shipping Terms:
|
| Model Code.: | YBD94-3 Needle Bars | Max Working Width: | 2438mm |
|---|---|---|---|
| X Area: | 305mm | Free Quilting Designs: | 360° |
| Rated Voltage: | AC 380V | Voltage Range: | +-4% |
| Power: | 4.5kw | Machine Size: | L4800*W1300*H1700(mm) |
| Machine Speed: | 500-550 Rpm | Certificates: | SGS,CE,OMA |
| High Light: | multi needle quilting machine,computerized quilting machines,computerized multi needle quilting equipment |
||

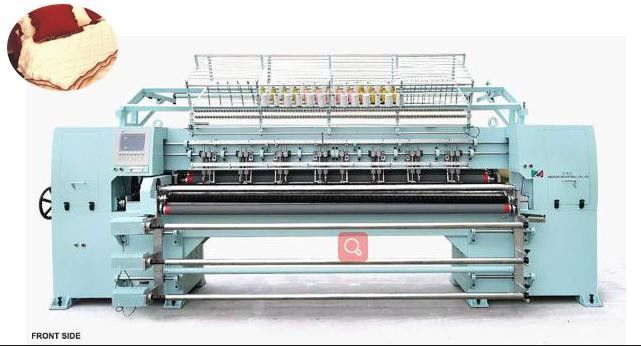

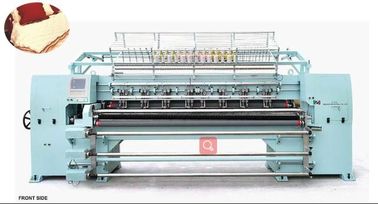

YBD94-3 Computerized Multi-needle comforter machine sewing and quilt stickmaschine cross stitch
Features:
1. Digital Control Ssystem for stability
2. Servo Motor control X/Y axis
3. Panasonic FCM control the main axis
4. hundreds of quilts patterns with machine
5. Quick and easy edit patterns
6. 360°quilt freely
7. can quilt independent patterns
8. Auto-thread brake system.
9. On-line Operation help

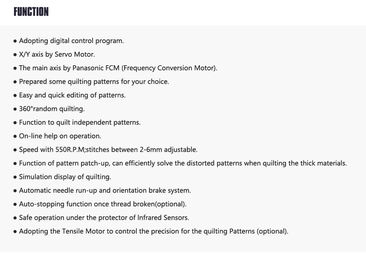

Main Function:
1). Adopt the advanced digital computer technology.
2). Saddling rack and roller are drive by servo motor.
3). Main axis uses the frequency conversion device.
4). The stitch can be freely set between 2-6mm.
5). more firm and durable needle bar frame structure with cheaper maintenance cost
6). 360 ° random quilting and limitless multi-span and independent pattern quilting
8). the machine is auto - stop when thread is broken with advanced interaction techniques
Machine Parameters:
| Model TYPE.: | 94-3Needles |
| affective fabric Width | 2438mm |
| X Area: | 305mm |
| Running Speed Range: | 400~550n/m |
| Design Quilting Direction: | 360° |
| Rated Voltage: | AC380V |
| Voltage Deviation: | ±4% |
| Power: | 4.5kw |
| Machine Size: | L4800*W1300*H1700(mm) |
Payment Term:
T/T 30% deposit from the date receipt, balance 70% by T/T before shipment
Delivery:
within 35-40 days after received the deposit
1Year Warranty and Installation:
1. Offering some free spare part when ship with the machine
2. Our machine will come with easy-to-follow, step-by-step assembly instructions as well as a basic training CD and manual on CD
3. If required, YIBODA will send technician to your factory for product training, installation, food, room, and ticket will absorbed at customer's side.
4. Within a year of spare parts if any damage, the supplier free warranty. Due to the buyer for damage and damage resulting from force majeure is not in the scope of the warranty. (note bobbin case, bobbin, needles, fluorescent lamp, Bobbin Winder Machine is not in the scope of the warranty)
Quits Samples:
