Product Details:
Payment & Shipping Terms:
|
| Model NO.: | YBD70"2 Needle | Working Width: | 1778mm |
|---|---|---|---|
| X Area: | 220mm | Rated Voltage: | AC 380V |
| Power: | 5.5kw | Machine Size: | L5700*W1300*H1700(mm) |
| Sewing Speed: | 600~700 R.P.M | Needle Type: | 9#~16# |
| Stitch Distance: | 1mm~12.7mm | Design: | 360° |
| High Light: | industrial lockstitch sewing machine,quilting sewing machines |
||

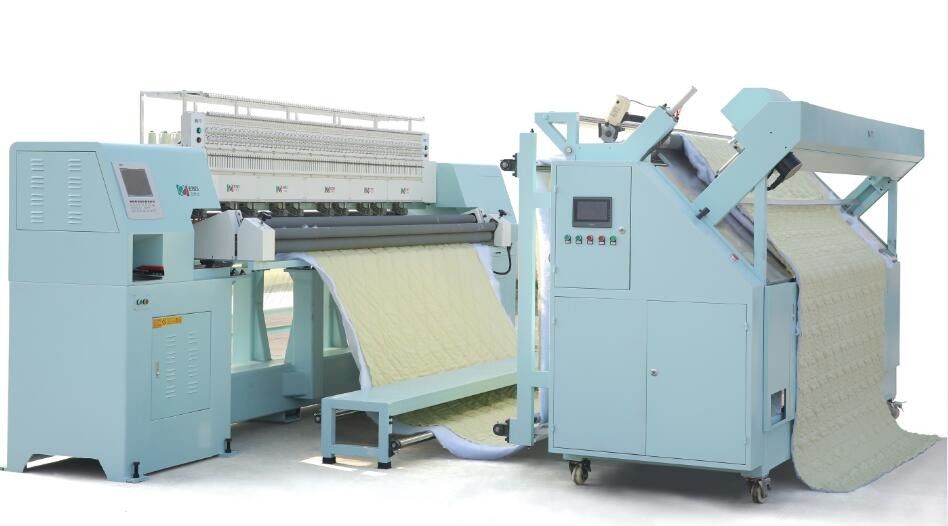

YBD70"-2 70 Inch Garment Quilting machine , Chain Stitch machine , Apparel & Textile Machinery , Home Textile Product Machine
Application :
Rotary Shuttle quilting machine is used for making garment , bedding sets , handbages , sleeping bags , household ornament ,ect
Features:
1. Quilting Tack and Jump patterns for option(cover 180º,360º patterns)with high precision without skipped stitches.
2. LCD touch screen computer control system with graphical interface, clear and easy to understand, accessible all function in one screen.
3. Vaporize Automatic Oiling Refill System lubricate machine heads, especially for needles and hooks.
4. New generation quilting software, easy operation of CAD drawing system.
5. Equipped worldwide advanced quilting machine head, the lower needle row can be moved side-way up to 52.2mm, coordinate working with the upper needle row,
6. Able to make many types of quilting patterns without changing needle position, hence greatly improve productivity.
7. First machine in the industry with no change of the initial needle position, enable extra big patterns to be quilted.
Parameters
| Machine Model: | YBD70"2 Needles |
| Active Fabric Width | 1778mm |
| X Area: | 220mm |
| Machine Running Speed: | 600~700 R.P.M |
| Needle Type | 9#-16# |
| Rated Voltage: | AC380V |
| Stitch Distance | 1mm~12.7mm |
| Power: | 5.5kw |
| Machine Size: | L4000*W1380*H2050(mm) |
After-Sales Service:
1. Within 8 hours email respond your machine problem
2. We have specific service team for following your machine problems in case any problems arose;
3. Provide lifelong free pattern designing service;
4. Provide free comprehensive machine operating and maintaining training if needed;
5. We have all kinds of spare parts in stock that satisfy your demand anytime.
6. Our engineers will be available to be at your factory to solve urgent problem that you cannot solve or install/upgrade machine, if needed, their accommodation fee,flight fee,transportation fee for this purpose should be paid by the buyers.
Working Theory:
Based on the sewing machine principle, the three-axis drive control is implemented in conjunction with the control system to stitch various patterns on the multilayer fabric.
