Product Details:
Payment & Shipping Terms:
|
| Model Number.: | YBD64-2 Needle Bars | Fabric Working Width: | 1676mm |
|---|---|---|---|
| X Area: | 250mm | Freedon Quilting Direction: | 360° |
| Voltage: | AC 380V | Voltage Range: | +-4% |
| Power: | 3.5kw | Machine Dimension: | L3800*W1300*H1700(mm) |
| Quilts Speed: | 400-600 N/m | Certificates: | SGS,CE,OMA |
| High Light: | sewing machine for quilting,sewing and quilting machine |
||

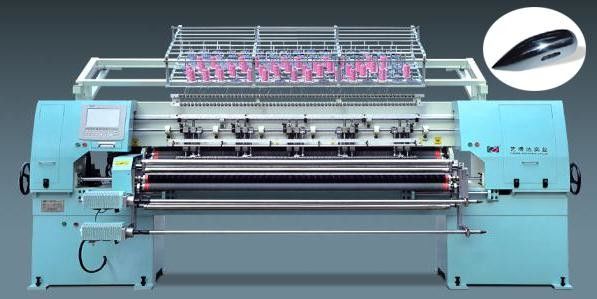

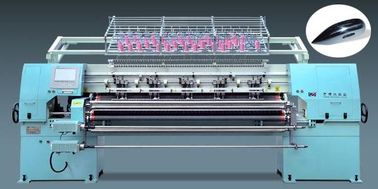

YBD64-2 Full Automatic Computerized Multi Needle Quilt Machine Sewing for Bedspread
Features Functions:
1. Adopting CNC control system
2. X/Y axis controled by Servo Motor
3. Main axis by Panasonic Frequency Conversion Motor
4. 100-300 quiltings patterns with machine
5. Easy edit patterns quickly
6. 360°free quilting
7. Quilt Function of independent patterns
8. Operation On-line help
9. Auto-thread brake detector.
INNOVATIVE FUNCTION
1. 360° random quilting pattern
2. perfect quilts even edge to edge
3. Fabric holder transport block ensure machine operates in more stability and less noise.
4. Sealed fabric rollers allow perfect control even for sides quilts.
5. High speed machine operation and stable control.
6. Easy feed in and feed out material.
Machine Parameters:
| YIBODA MACHINE Model: | YBD64-2 Needles |
| Max Working Width | 1676mm |
| X Area: | 250mm |
| Running Speed: | 400~600 R.P.M |
| Quilt designs angle: | 360° |
| Voltage: | AC380V |
| Voltage Deviation: | ±4% |
| Power: | 3.5kw |
| Machine Length*Width*Height: | L3800*W1300*H1700(mm) |
Bar Distance Chart:
YBD64-2 has two needle bars with 3 inch bar distance.
The Maximum quilts width and height of angle to angle is 6 inch.
Within 6 inch Easy and freely set the quilt size according to designs size.
Payment Term:
T/T 30% deposit from the date receipt, balance 70% by T/T before shipment
Delivery:
within 35-40 days after received the deposit
After-Sales Service:
1.Within 8 hours email respond your machine problem
2.We have specific service team for following your machine problems in case any problems arose;
3. Provide lifelong free pattern designing service;
4. Provide free comprehensive machine operating and maintaining training if needed;
5. We have all kinds of spare parts in stock that satisfy your demand anytime.
6. Our engineers will be available to be at your factory to solve urgent problem that you cannot solve or install/upgrade machine, if needed, their accommodation fee,flight fee,transportation fee for this purpose should be paid by the buyers.
Quits Samples
