Payment & Shipping Terms:
|Model NO.:||YBD166||N/C/H:||66 Needles,Single Color|
|Needle Distance:||50.8 Mm||X-Area:||250mm|
|Stitch Distance:||1mm-12.7mm||Needle Type:||9#~16#|
|Working Width:||3302mm||Speed:||650 R.P.M~900 R.P.M|
|Power Supply:||AC220/380V;2&3 Phases; 50Hz||Power:||5.5kw|
|Machine Size:||L5000*W1300*H1650(mm)||Packing Size:||L5400*W2000*H1950(mm)|
quilting with embroidery machine,
computer embroidery machine,
single roll quilting embroidery machine

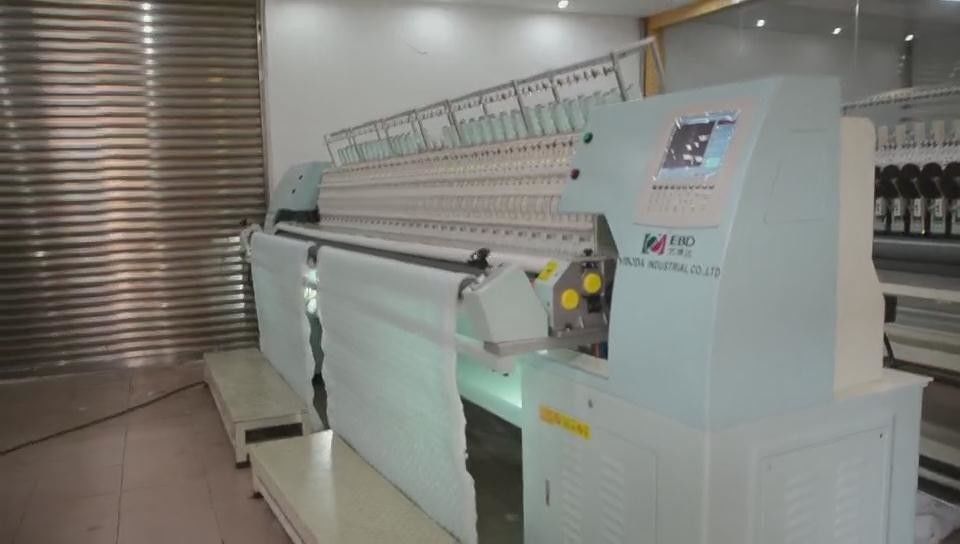

YBD166 High Speed Single Roll Quilting Embroidery Machine 66 Needles Quilter One Color Sewing Clothing
Yiboda Quilting and Embroidery Machine is widely used in car seat , foot pad , car pad , luggage and garment , home textile like quilts , curtain , bed cover , etc
1. Advanced digital computer system
2. Vivid display and easy operation
3. Automatic color-choosing and selecting any kind of head you like to quilt and embroider.
4. Imported linear guide rail, light-weighted saddletree system
5. Make the Quilts even,neat,natural and nice
6. Y direction unlimited embroidering,
7. Imported tension motor ensure upper & lower fabric goes smoothly and simultaneously with the cotton
8. Two servo motor offer power to X/Y-axis, to sure machine working high speed and move in high precision.
9. Adopt 3.5 floppy disk and USB can be used with common embroidery machine.
10. Features of rolling design in Y direction, continuous embroidery &quilting on the cloth .
|Machine Code:||YBD166 High Speed Quilting Embroidery Machine|
|N/C/H:||33 heads , 66 needles , 1 color|
|Needle Distance:||50.8 mm|
|Machine Size :||L5000*W1300*H1650(mm)|
|Packing Size :||L5400*W2000*H1950(mm)|
High Quality Spare Parts:
Imported parts of bobbin case , rotary hook , bobbin
Servo Motor & Drive
YBD166 Needle distance : 50.8mm
Moving distance in X direction can reach 250mm
At the same time, three motors are used to drive the movement of the XYZ axis. The X-axis controls the movement of the amine frame to the left and right, and the Y-axis controls the movement of the roller. The Z-axis is the main axis.
At the same time, the up-and-down movement of the needle and the back and forth movement of the bottom bobbin are controlled to Sew product.
