|Model Code:||YBD94-2 Needle Bars||Max Quilt Width:||2438mm|
|X Area:||250mm||Quilting Direction:||360°|
|Voltage:||AC 380V||Voltage Deviation:||+-4%|
|Quilting Speed:||400-550 N/m||Certificates:||SGS,CE,OMA|
garment manufacturing machines,
quilting sewing machines

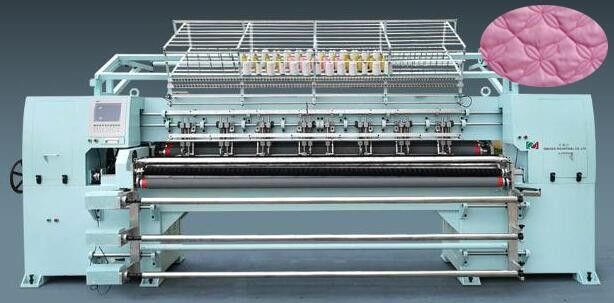

YBD94-2 High-end Shuttle Quilting Machine for Carpets , Garments Multi Needle Machinery , Lock Stitch Machine for Blanket Making
1). Adopt the High Tech computer technology.
2). Saddling rack and roller are drive by servo equipment.
3). Principal axis uses the frequency conversion Motor.
4). Adjust speed by computer and the Max. speed is 600r/min.
and the stitch can be set between 2-6mm.
5). illimitably quitls Multi-span and independent pattern quilting .
6). Compensation function, an effective solution for looping pattern with thick material.
7). Auto Run-up needle and prositioning brake system.
8). 200-300 patterns with machine for your choice
9). Switch the constant quilting and one-step quilting without any interval.
1. 360° random quilting pattern
2. perfect quilts even edge to edge
3. Fabric holder transport block ensure machine operates in more stability and less noise.
4. Sealed fabric rollers allow perfect control even for sides quilts.
5. High speed machine operation and stable control.
6. Easy feed in and feed out material.
|Max Quilts Width||2438mm|
|Quilting Speed:||400~550 R.P.M|
At the same time, three motors are used to drive the movement of the XYZ axis.
The X-axis controls the movement of the amine frame to the left and right ,
and the Y-axis controls the movement of the roller.
The Z-axis is the main axis. At the same time , the up-and-down movement of the needle and the back and forth movement of the bottom bobbin are controlled to Sew product.
