|Model NO.:||YBD94-3||Working Width:||2438mm|
|X Area:||250mm||Quilting Designs:||360°|
|Rated Voltage:||AC 380V||Voltage Deviation:||+-4%|
computerized chain stitch multi needle quilting machine,
chain stitch quilting machine

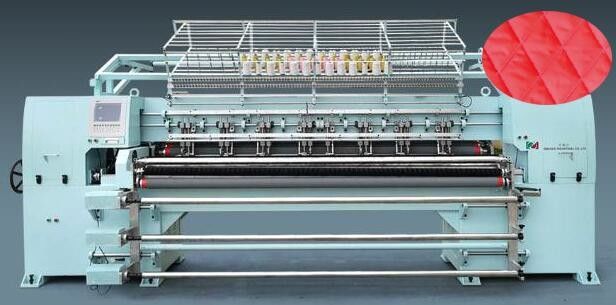

YBD94-3 Computer Chain Stitch Sewing Quilting Machine for Plush Quilt , Portable Sack Sewing and Quilting ,
1) Computerized speed adjusted , about 600r/min.
2) Needle row driven by aluminum alloy needle bar frame structure .sturdy and durable .
3) Saddles and Rollers driven by Servo driven equipment , Spindle adopts frequency conversion control .
4) Saddles using quilting machine with high rigidity design . The stand of fabric separate from saddles , effectively reduce the operating load of motor .
5) Dual clutch device , to solve the synchronization problem of rollers in front and back .
6) Using high-precision and high rigidity imported screw mandrel .
7) 360 degree free quilting come with unlimited Multi-span quilting independent patterns .
8) Automatic thread -break detection unit .
9) Infrared sensor make sure more safety operation .
10) The machine runs smoothly , low noise , high precision , low thread-break rate and easy to operate .
After Sales Service:
1) YIBODA technician will help erect the machines and do necessary training to customer's operators.
2.) Should any problem happened, we will give immediate and active response, help & instruct to solve, through mall/cell phone or live cam.
3.) Preinstalled with many patterns/designs in USB to each machine. For new quilting patterns/designs, we will help & program at the earliest, free of charge.
3) Normal accessories are included with machines.
4) Provide necessary operation videos for reference.
