|Model Code.:||YBD128-3 Needle Bars||Max Working Width:||3251mm|
|X Area:||305mm||Free Quilting Designs:||360°|
|Rated Voltage:||AC 380V||Voltage Range:||+-4%|
|Machine Speed:||400-500 Rpm||Certificates:||SGS,CE,OMA|
sewing quilting machine,
quilt making equipment

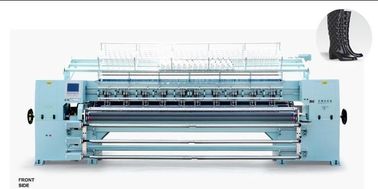

YBD128-3 Quilt Machine Sewing , Industrial Quilting Machine , Leather Car Seat Cushion Quilting Machine with CE ISO
YBD128-3 industrial quilting machine is widely used for quilts like car seat covers , car foot pads , automobile cushion , seat cushions , car pad , etc .
1. Adopting brand digital control computer system, high stablity, low fault.
2. X/Y axis by brand Servo Motor
3. The main axis by Panasonic FCM(Frequency Conversion Motor)
4. 10.4'' LCD monitor for easy operation
5. 2,000,000 stitches memory capacity
6. Long-lived Japan bearing in load-carrying part
7. American Brand belt
8. Infrared Sensors protector for safe operation
9. Tensile Motor to precisely control quilting Patterns(Optional)
1). Adopt the High Tech computer technology.
2). Saddling rack and roller are drive by servo equipment.
3). Principal axis uses the frequency conversion Motor.
4). Adjust speed by computer and the Max. speed is 600r/min.
and the stitch can be set between 2-6mm.
5) .illimitably quitls Multi-span and independent pattern quilting .
6). Compensation function, an effective solution for looping pattern with thick material.
7). Auto Run-up needle and prositioning brake system.
8). 200-300 patterns with machine for your choice
9). Switch the constant quilting and one-step quilting without any interval.
|Machine Model :||128-3 Needles bar|
|Max Quilting Width||3251 mm|
|X Direction:||305 mm|
|Sewing Speed:||400~500 n/m|
|Freedom design Quilting:||360°|
At the same time, three motors are used to drive the movement of the XYZ axis. The X-axis controls the movement of the amine frame to the left and right, and the Y-axis controls the movement of the roller. The Z-axis is the main axis.
At the same time, the up-and-down movement of the needle and the back and forth movement of the bottom bobbin are controlled to Sew product.
T/T 30% deposit from the date receipt, balance 70% by T/T before shipment
within 35-40 days after received the deposit
1Year Warranty and Installation:
1)YIBODA technician will help erect the machines and do necessary training to customer's operators.
2.) Should any problem happened, we will give immediate and active response, help & instruct to solve, through mall/cell phone or live cam.
3.) Preinstalled with many patterns/designs in USB to each machine. For new quilting patterns/designs, we will help & program at the earliest, free of charge.
3) Normal accessories are included with machines.
4) Provide necessary operation videos for reference.
